HLG EUROPE / Diablo Series
HLG 750 Diablo X
Reference HLG-750-DIABLO-X
- Electrical power
- 715 W
- Photon output
- 2 105 µmol/s
- Application
- Flowering
Delivery throughout EuropeTerms and costs depend on your destination.
About this model
The HLG 750 Diablo X combines four Diablo Quantum Boards®, integrated reflectors and a white spectrum enhanced with deep red. Adjustable power up to 715 W, a stated output of 2,105 µmol/s and 2.95 µmol/J photon efficacy.
More info

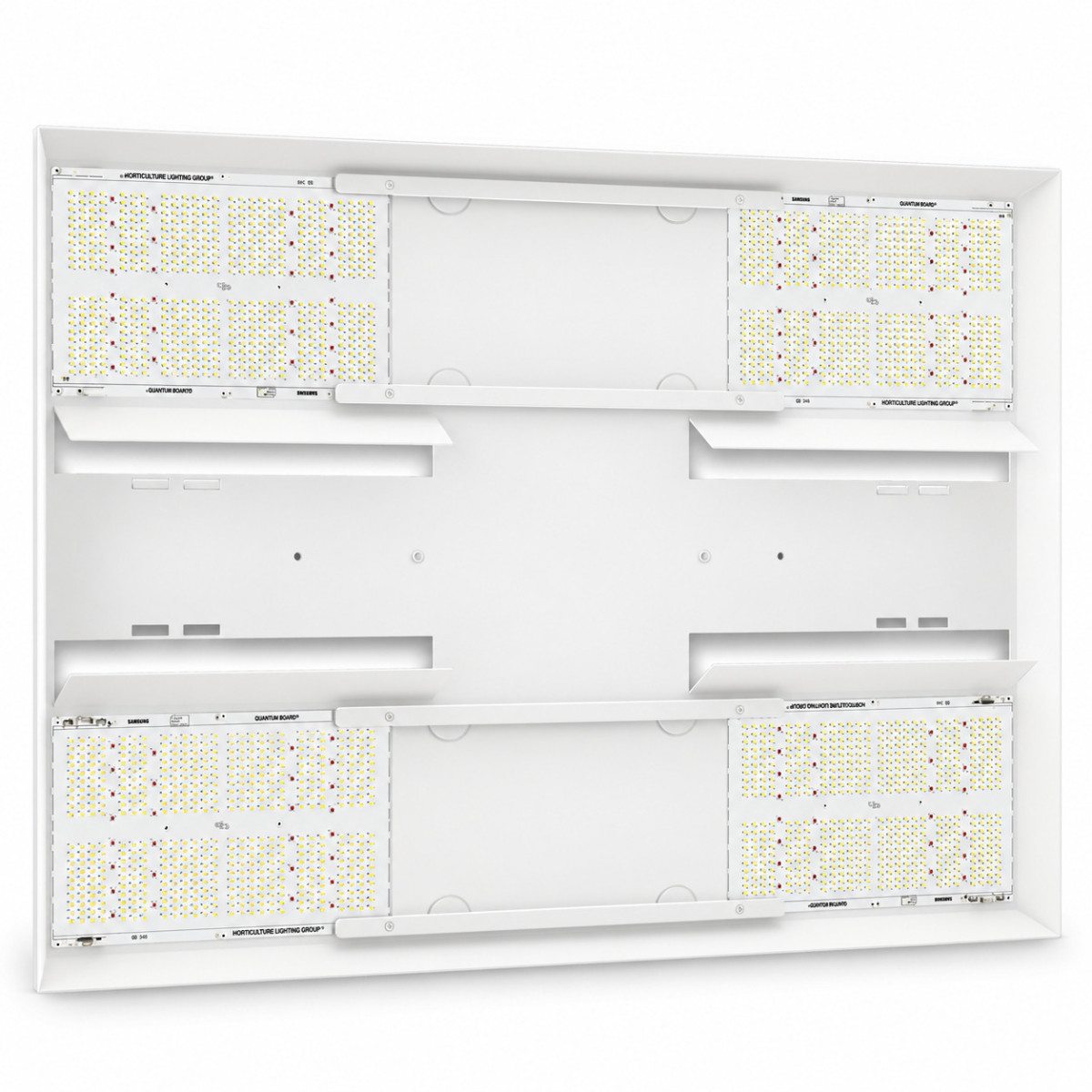

HLG 750 Diablo X — LED Grow Light
The HLG 750 Diablo X is an LED grow light built around four Diablo Quantum Boards®. Its white and deep-red spectrum supports vegetative growth and flowering, with intensity adjusted to the growth stage. The X version has a manufacturer-published spectral ratio of 48% red, 32% green and 20% blue.
Spectrum and light distribution
Four LED boards are distributed across a chassis with integrated reflectors. This layout is designed for grow tents, growing tables and bench installations. Passive cooling dissipates heat without an integrated fan.
Technical specifications
| Electrical power | 0–715 W |
|---|---|
| Input voltage range | 120–277 VAC |
| Frequency | 50/60 Hz |
| Photosynthetic photon flux (PPF) | 2 105 µmol/s |
| Photon efficacy | 2.95 µmol/J |
| LED boards | 4 × Diablo Quantum Board® |
| Red / green / blue ratio | 48 / 32 / 20 % |
| Manufacturer flowering footprint | 152 × 152 cm (5 × 5 ft) |
| Manufacturer vegetative footprint | 183 × 183 cm (6 × 6 ft) |
| Light-to-canopy distance for flowering | 38–61 cm (15–24 in) |
| Light-to-canopy distance for vegetative growth | 91 cm (36 in) |
| Dimensions | 95.25 × 68.90 × 9.53 cm |
| Weight | 9.19 kg (20.25 lb) |
| Cooling | Passive, no integrated fan |
HLG coverage figures are guidelines. Available height, reflectivity and plant requirements must also be considered. Electrical power alone does not determine a suitable growing area.
Installation and adjustment
HLG specifies a light-to-canopy distance of 38–61 cm for flowering and approximately 91 cm for vegetative growth. The manual states that the light must be dimmed for vegetative use. Suspend the fixture using chains or hooks and follow the mounting and clearance instructions in the manual.
Choose the right configuration
The 750 Diablo X is distinct from the standard 750 Diablo, the 750 Diablo ES and the Scorpion Diablo X. Compare the spectrum, dimensions and dimming controls before choosing your configuration.
Data sheet
| Maximum power | 715 W |
| Photon flux (PPF) | 2 105 µmol/s |
| Photon efficacy | 2.95 µmol/J |
| Input voltage | 120–277 VAC / 50–60 Hz |
| Dimensions | 95.25 × 68.90 × 9.53 cm |
| LED boards | 4 × Diablo Quantum Board® |
